Product Introduction

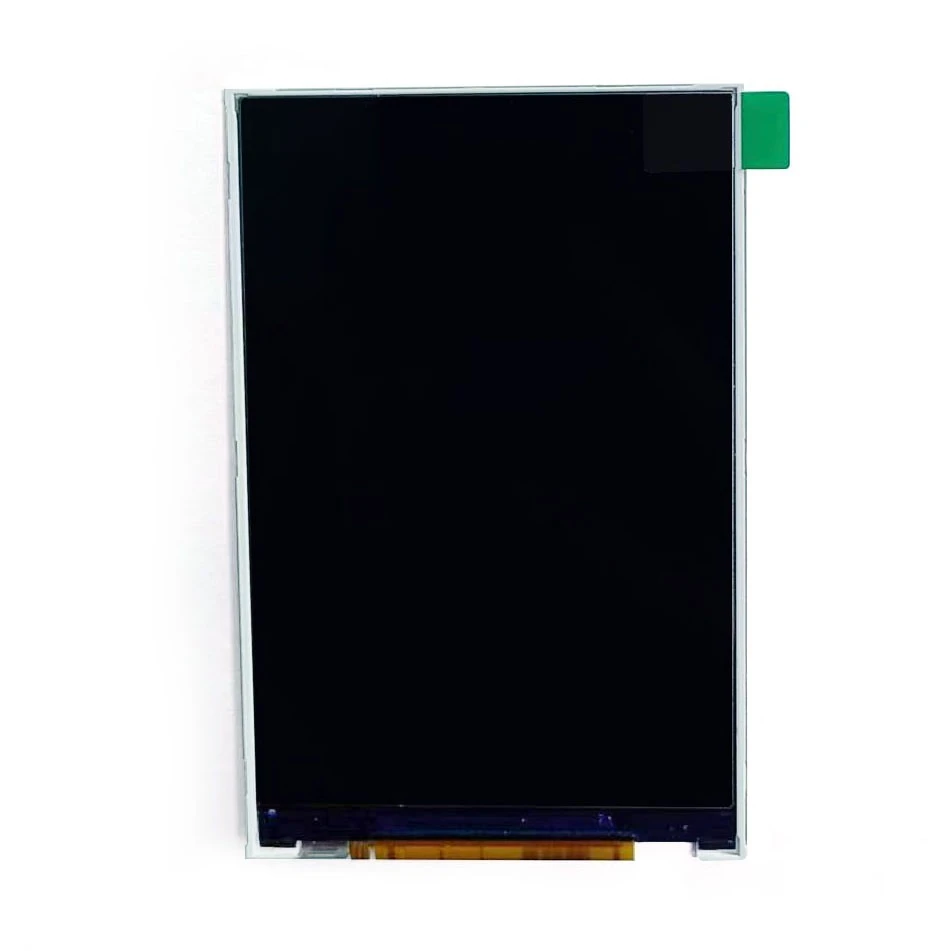

3.5 tft display

is a color screen, which means the diagonal length of the screen is about 8.9 cm. It is often used in handheld devices or small embedded projects.

3.5 inch tft lcd display arduino

It is used in conjunction with an Android microcontroller. The 3.5-inch TFT module is connected to other devices through pin headers, cables or plug-in boards.

3.5-inch TFT LCD touch screen

can be customized, but there will be mold opening fees in the early stage. Touch screens are divided into resistive and capacitive types, and the mold opening fees are different. Please contact customer service for specific details.

3.5 tft display Parameter (specification)

Module Size ：54.46(H)82.94(V)2.1(D)	LCD AA :48.96(H)x 73.44(V)MM
LCD size:3.5 inch	Resolution :320(RGB)X480
Driver IC:ST7796U-G5	Backlight Driver type：Power/3.1V/HITE
Interface : MUC/8PIN	Backlight :White LED

PIN	SYMBOL
1	RESET
2-9	DB7-DB0
10	RS
11	CS
12	WR
13	RD
14-15	LEDK
16-17	LEDA
18-19	VCC
20-23	GND
24	TE

3.5 tft Similar products

FAQ

Q: How can I adapt the operating voltage of a 3.5-inch TFT display to 5V on an Arduino?

A: TFT panels typically operate at 3.3V. Bare screens cannot directly accept 5V signals, which can easily cause screen burn-in. However, adding a level shifter circuit can allow this to work.

Q: Can a 3.5-inch TFT display display video?

A: In principle, it can, but it's a separate accessory and requires compatible software.

Q: Does the 3.5-inch TFT LCD support touch?

A: Our in-stock screens don't have touch functionality, but we can customize them. There's a mold-making fee for either resistors or capacitors. Please contact customer service for details.
