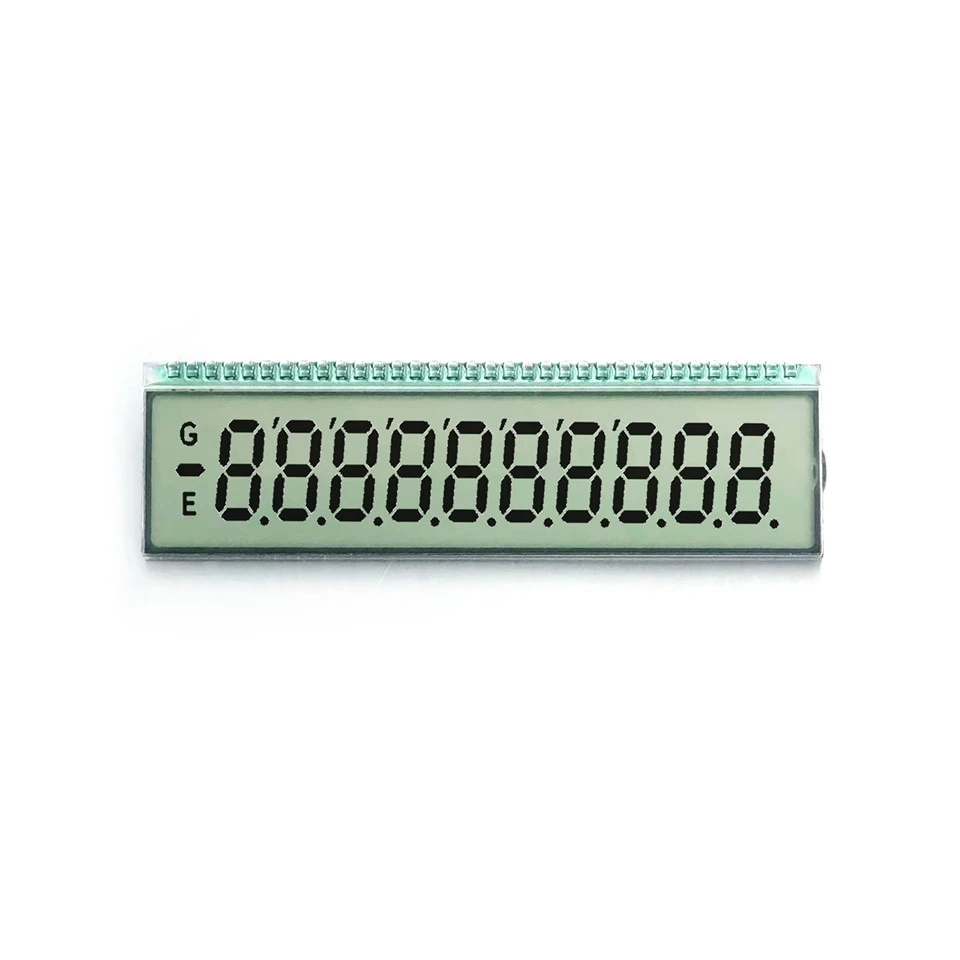

Reflective LCD Screen is a common digital display.Positive LCD Display is favored by users with its clear display effect, low power consumption, high reliability and other characteristics.
A variety of sizes and shapes: POSITIVE LCD screen can produce different sizes and shapes according to customer needs, suitable for different application scenarios. Customers can choose the appgment LCD of the appropriate size and shape according to their product design requirements.
High cost benefits: Compared with other display technologies, the cost of Segment LCD is relatively low and cost -effective. Customers are more inclined to choose products with high cost benefits to reduce production costs.
1.product Introduction
Limited display content: SEGMENT LCD panel can only display simple content such as numbers, letters, symbols, etc., and complex images or animations cannot be displayed.
Foreign perspective: When watching a specific angle, the display effect of the Segment LCD may be affected and you need to adjust the viewing angle.
2.Product feature
1. The Display Effect Is Bright: The background color of the positive LCD is light, and the text or image is dark, which can show a bright display effect. clear and distinct.
2. Wide Perspective: There is a wide range of perspectives to the LCD, and users can watch the content on the screen from different angles. The user experience is better.
3. Display Stability: Positive LCD shows stable effects in different environmental light and has a wide range of applicability. Applicable to different environmental conditions.
4.Low -display contrast: Under certain circumstances, the contrast of positive LCD may not be as negative LCD.
Widely used in various electronic products, such as electronic scales, instruments, radio frequency beauty instruments, microphones, etc.
4.product Parameter (specification)
|
1. MODEL NUMBER:CX50161 |
|
|
2. MODEL SIZE:44*20.1MM |
3. POLARIZER MODE:REFLECTIVE,POSITIVE |
|
4 .DISPLAY TYPE:HTN |
5 .DRIVING METHOD:1/5DUTY,1/3BIAS |
|
6. VIEWING DIRECTION:6 O'CLOCK |
7 .CONNECTION:PIN/HEAT SEAL |
|
8 .OPERATING TEMP:0°C TO +50°C |
9. STORAGE TEMP: -10°C TO +70°C |
