Introduction

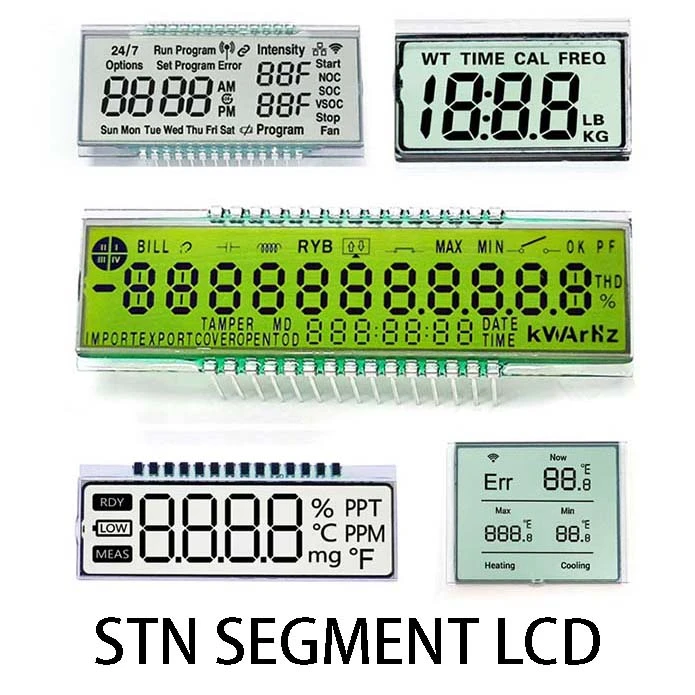

1.product Picture
2.Product feature
High contrast ratio
Due to the special arrangement of liquid crystal molecules, our products can achieve a higher static contrast ratio, usually up to 200:1 or even higher. This high contrast ratio makes black deeper and white brighter, thus improving the overall visual effect of the image.
Wide viewing angle
The liquid crystal molecules of our products are twisted at a larger angle under the action of the electric field, usually about 180 degrees, while the twist angle of traditional TN (Twisted Nematic) displays is generally 90 degrees. Secondly, the viewing angle of our display can reach more than 160 degrees, and the display effect can remain clear and high in contrast even when viewed from the side.
Multiple display modes
STN LCD Display supports multiple display modes, such as positive display and reverse display mode, which can adjust the display effect according to different application requirements. In a strong light environment, the reverse display mode can effectively improve the clarity and contrast of the display and avoid the display content being too blurred.
Strong anti-interference ability
The working principle of our display is based on the electrical control characteristics of liquid crystal molecules, and the circuit design has strong anti-interference ability. Compared with some old display technologies, our display has a better suppression effect on external electromagnetic interference.
Consumer Electronics
STN LCD displays are widely used in a variety of consumer electronics, especially in scenarios with low power requirements.
Industrial Equipment and Instruments
In industrial automation equipment, our displays are the preferred display solution for monitoring systems, dashboards, and control panels due to their high stability and good anti-interference ability.
Intelligent Transportation Systems
In intelligent transportation systems, our displays are widely used in road signs, traffic signs, and vehicle information displays.
Commercial Advertising and Public Information Displays
Our displays are often used in commercial billboards and public information display boards, especially in places where static or dynamic graphics need to be displayed for a long time.
4.product Parameter (specification)
|
1. MODEL NUMBER:CX50161 |
|
|
2. MODEL SIZE:70*22MM |
3. POLARIZER MODE:TRANSFLECTIVE,POSITIVE |
|

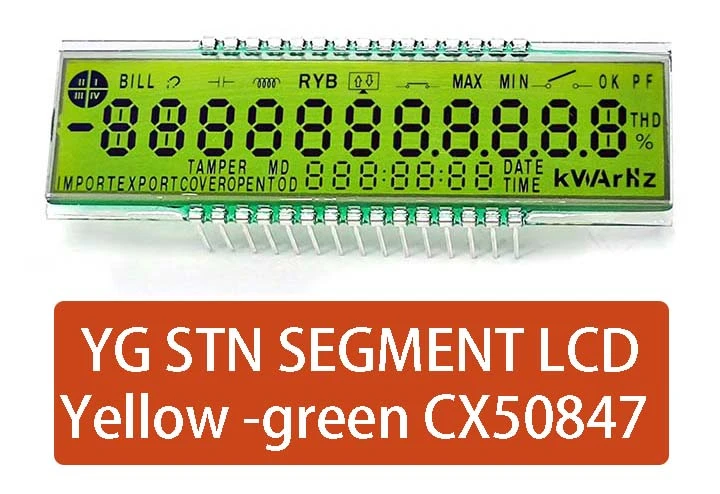

4 .DISPLAY TYPE:STN(YG) |
5 .DRIVING METHOD:1/8 DUTY, 1/3 BIAS |
|
6. VIEWING DIRECTION:6 O'CLOCK |
7 .CONNECTION:PIN |
|
8 .OPERATING TEMP:-30°C TO +80°C |
9. STORAGE TEMP: -40°C TO +90°C |
Customer Service
FAQ
Q: What is an STN LCD display?
A: An STN LCD (Super Twisted Nematic Liquid Crystal Display) is a type of liquid crystal display that uses a twisted nematic liquid crystal structure to control light. The "super twisted" aspect refers to the higher degree of twist in the liquid crystal molecules compared to standard TN (Twisted Nematic) displays, which improves contrast and viewing angles.
Q: How does an STN LCD work?
A: STN LCDs work by controlling the orientation of liquid crystal molecules between two electrodes. When an electric current is applied, the crystals twist, affecting the passage of light through the display. In an STN display, the crystals are twisted more than in traditional TN displays, improving performance in terms of contrast and viewing angles.
Q: What are the advantages of using an STN LCD?
A: The main advantages of STN LCDs include better contrast, wider viewing angles, and improved cLCDsction (in color STN displays) compared to standard TN displays. They are also more power-efficient than other display technologies like TFT LCDs, making them suitable for battery-operated devices.
Q: What is the difference between STN and TN LCDs?
A: The primary difference is in the twist of the liquid crystal molecules. In an STN display, the liquid crystals are twisted more (typically 180 to 240 degrees), which results in better contrast and viewing angles compared to a TN display, where the crystals are twisted by a smaller angle. This makes STN displays more suitable for use in applications where better clarity is required.
Q: What are the common applications of STN LCDs?
A: STN LCDs are commonly used in applications such as handheld devices, calculators, clocks, digital watches, portable instruments, automotive displays, and small information panels. They are ideal for applications where power efficiency and low-cost displays are important.
Q: What types of STN LCD displays are available?
A: STN LCD displays are available in two main types: monochrome and color. Monochrome STN displays typically show black and white or grayscale images, while color STN displays (sometimes called CSTN) are capable of displaying multiple colors by using a color filter layer.
Q: What is a CSTN LCD?
A: CSTN (Color Super Twisted Nematic) LCD is a variation of the standard STN LCD that incorporates a color filter layer. This allows the display to show multiple colors, typically in a 262,144-color palette, making it suitable for more colorful applications like mobile phones, digital cameras, and handheld gaming devices.
Q: What are the resolution capabilities of STN LCDs?
A: The resolution of STN LCDs can vary, but typical resolutions range from 128x64 pixels to 320x240 pixels for monochrome displays, and up to 640x480 pixels or higher for color CSTN displays. The resolution depends on the specific display design and application requirements.
Q: What are the power consumption characteristics of STN LCDs?
A: STN LCDs are more power-efficient than other types of LCDs, such as TFT, because they do not require a backlight. They use ambient light for reflection (in reflective versions) or low-power LED backlighting (in transmissive versions). This makes them well-suited for battery-powered applications like portable electronics.
Q: What are the limitations of STN LCDs?
A: Despite their advantages, STN LCDs have some limitations. These include slower response times compared to TFT displays, limited color depth (in monochrome versions), and lower brightness in some applications. Additionally, the display quality can degrade in low-light environments unless a backlight is used, and the contrast may not be as sharp as in more advanced display technologies.
