Introduction
The One-digit 7 Segment LED is a common display device, widely used in the field of digital display. It consists of seven LED light segments, and the numbers 0-9 can be displayed by controlling the switch status of these light segments.
1.product Introduction
2.Product feature
Simple circuit design
Our products are composed of 7 independent LED lights, each connected by a simple control circuit. This design reduces the complexity of the circuit and reduces the probability of failure.
Excellent light guide design
Each 7-segment display device of our products usually adopts a precise light guide package to ensure that the light energy of the LED can be effectively concentrated and evenly distributed. This light guide design not only improves the luminous efficiency of the LED but also ensures a clear and bright display effect.
Low operating voltage
The operating voltage of One-digit 7 Segment LED is generally low, usually between 2V and 3.5V. Low voltage operation means that the required current is also relatively small. Secondly, our products can provide sufficient brightness output (such as 3000mcd) at an operating current of 20mA while maintaining low power consumption.
Stable drive circuit
Our products are usually equipped with an efficient drive circuit that can stably control the output of the current to avoid damage to the LED due to overload or current fluctuations. Stable current input helps to maintain the luminous intensity of the LED while reducing the impact of power fluctuations on the LED life.
Timing Display
Our products are widely used in electronic clocks, countdown timers and other equipment, which can display time numbers.
Instrumentation
In voltage, current, tem,perature and other measuring instruments, our display can be used as a digital readout display.
Home Appliances
Many home appliances, such as microwave ovens, washing machines, and other equipment, use One-digit 7 Segment LED to display functional status or working mode.
Industrial Control
In industrial equipment, our display is often used to display numerical values, working status or alarm information.
4.product Parameter (specification)
|

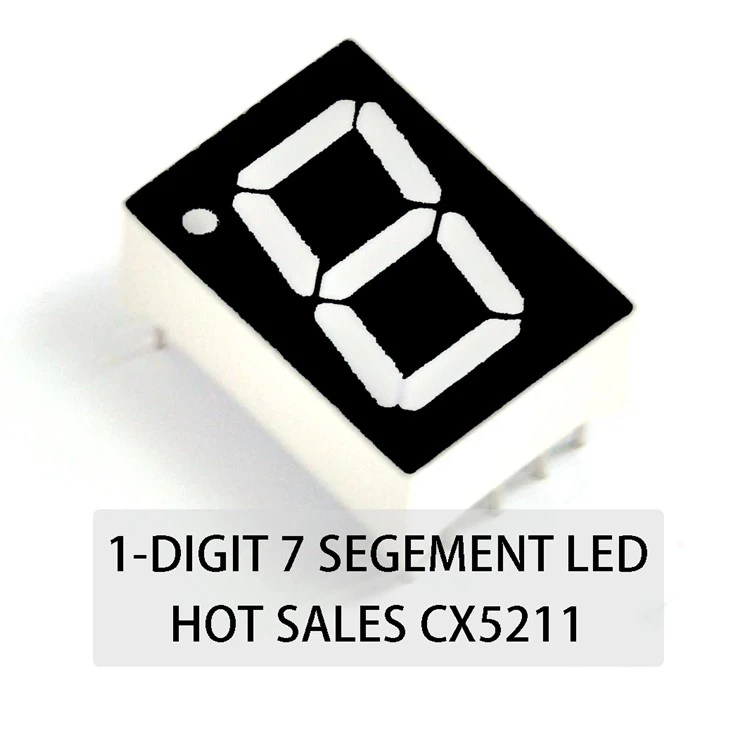

1. MODEL NUMBER:CX5211 |
|
|
2. MODEL SIZE:12.6*17.5*10mm |
3. LED COLOR:REGATIVE.POSITIVE |
|
4 .OPERATING TEMP:-10°C TO +60°C |
5. STORAGE TEMP: -20°C TO +70°C |
Customer Service
FAQ
Q: What is a One-Digit 7 Segment LED?
A: A One-Digit 7 Segment LED is a display consisting of seven individual LED segments arranged in a figure-eight pattern. It can display one numerical digit (0-9) at a time by illuminating different combinations of segments.
Q: How does a One-Digit 7 Segment LED display a number?
A: A One-Digit 7 Segment LED displays a number by turning on specific segments of the display. Each number from 0 to 9 is represented by a unique combination of segments that light up to form the digit.
Q: What are the typical applications of a One-Digit 7 Segment LED?
A: One-Digit 7 Segment LEDs are commonly used in applications that require the display of a single digit, such as counters, digital clocks, thermometers, and various electronic devices where only one digit needs to be displayed at a time.
Q: What are the components of a One-Digit 7 Segment LED?
A: A One-Digit 7 Segment LED consists of seven LED segments (labeled a, b, c, d, e, f, g) arranged in a figure-eight pattern. Each segment can be individually controlled to form a specific number, and it can be either a common anode or common cathode configuration.
Q: How is a One-Digit 7 Segment LED controlled?
A: A One-Digit 7 Segment LED is controlled by applying voltage to the appropriate segments. In a common anode display, the anodes of all the segments are connected to a common pin, and segments light up when the cathodes are connected to ground. In a common cathode display, the cathodes are connected to a common pin, and segments light up when the anodes are supplied with a positive voltage.
Q: What is the difference between common anode and common cathode One-Digit 7 Segment LEDs?
A: In a common anode One-Digit 7 Segment LED, the anodes of all segments are tied to a common pin, and the segments are lit by applying a low voltage to the cathodes. In a common cathode display, the cathodes of all segments are tied to a common pin, and the segments light up by applying a high voltage to the corresponding anodes.
Q: What is multiplexing, and does it apply to a One-Digit 7 Segment LED?
A: Multiplexing is a technique used to display multiple digits by rapidly switching between them, giving the illusion that they are displayed at the same time. While multiplexing is not typically needed for a single digit, it can be used in applications where multiple One-Digit 7 Segment LEDs are controlled by the same driver circuit.
Q: How is the brightness of a One-Digit 7 Segment LED controlled?
A: The brightness of a One-Digit 7 Segment LED is controlled by adjusting the current flowing through the LED segments. This can be done by using resistors to limit current or through pulse-width modulation (PWM), which adjusts the amount of time the LED is on during each cycle.
Q: What is the typical voltage and current for a One-Digit 7 Segment LED?
A: A One-Digit 7 Segment LED typically operates with a forward voltage of 1.8V to 3.2V (depending on the LED color). The current required for each segment is usually around 10mA to 20mA. The total current depends on how many segments are lit at any given time.
Q: What are the advantages of using a One-Digit 7 Segment LED?
A: Advantages of using a One-Digit 7 Segment LED include simplicity, low cost, low power consumption, and ease of use. It is an ideal solution for applications where only one numerical digit needs to be displayed, and it provides a clear and readable output.
