Description

Technical Parameters

Product Introduction

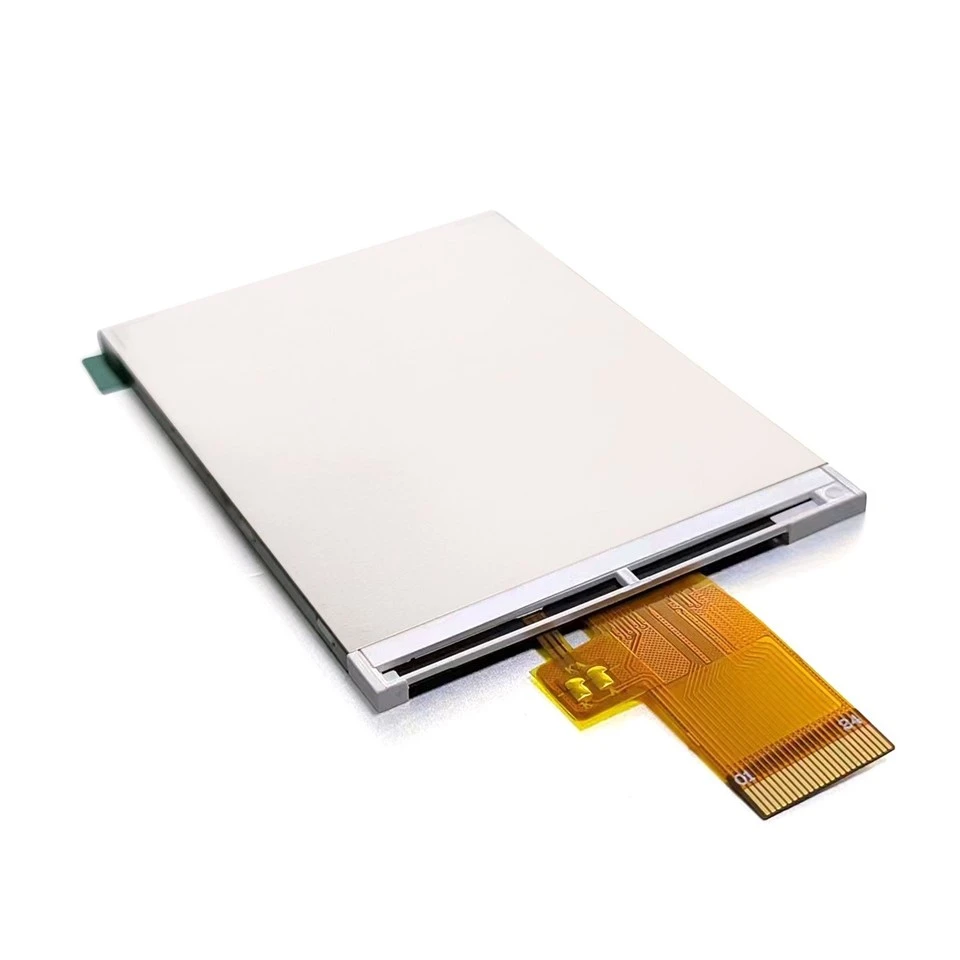

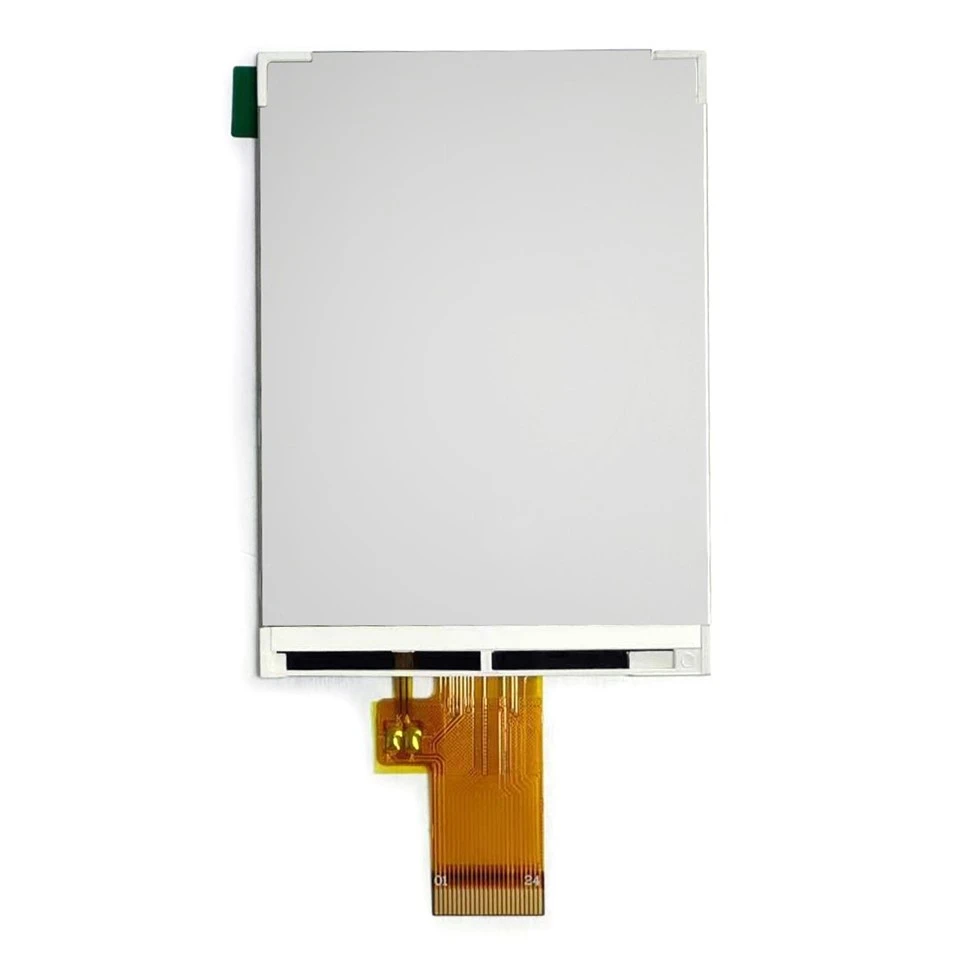

2.8 inch tft lcd

is a small high-performance LCD display with compact size and good display performance. It is widely used in a large number of handheld devices, such as MP3/MP4, pocket game consoles, etc.

2.8 tft display

2.8 TFT Display has a diagonal length of about 71mm. The most common ones are 240 × 320 and 320 × 480.

2.8 tft touch screen

This is a customizable touch screen based on a 2.8 TFT LCD.

2.8 spi tft module Parameter (specification)

Module Size ：27.90(W)32.64(H)1.96(T)MM	LCD AA :25.50(H)x 26.50(V)MM
LCD size:1.44inch	Resolution :128(RGB)x128 pixel
Driver IC:NV3023B	Backlight Driver type：Power/3.1V/HITE
Interface : 4W/4 SPI	Backlight :White LED

PIN	SYMBOL
1	VCC
2	LEDK
3	LEDA
4	REST
5	CS
6	RS
7	WR
8	RD
9-16	D0-D7
17	IOVCC
18	GND
19	TE
20-24	GND

0.96 Tft Display Similar products

FAQ

Q: What interfaces does the 2.8 TFT Display support?

A: SPI interface: Fewer pins, suitable for microcontrollers (Arduino, STM32, etc.).
MCU parallel port (8/16-bit): Faster, suitable for embedded systems.
RGB interface: High refresh rate, suitable for scenarios requiring video display.

Q: 2.8 Does a TFT display consume a lot of power?

A: The primary power consumption comes from the LED backlight. Current typically ranges from tens to hundreds of mA, making it suitable for battery-powered portable devices.

Q: What are some commonly used driver ICs?

A: ILI9341
