3.5 Inch Touch Screen Arduino

Product Introduction 3.5 tft lcd screen The 3.5TFT lcd screen has a diagonal width of 3.5 inches (approximately 8.9 cm), which belongs to small-sized display screens. Driven by TFT active matrix, the picture brightness is uniform and the refresh rate is fast. 3.5 inch tft lcd display The...

Send Inquiry

Description

Technical Parameters

Product Introduction

3.5 tft lcd screen

The 3.5TFT lcd screen has a diagonal width of 3.5 inches (approximately 8.9 cm), which belongs to small-sized display screens. Driven by TFT active matrix, the picture brightness is uniform and the refresh rate is fast.

3.5 inch tft lcd display

The 3.5-inch tft lcd display belongs to the color screen display module, and its resolution is 320RGB x 480 Dots. It is named 3.5-inch rpi display 480x320 xpt2046 based on the number of dots and other product features.

3.5 inch touch screen arduino

The 3.5-inch touch screen arduino can be customized into a resistive touch screen (RSTP or capacitive touch screen (CTP), while our physical sample is a liquid crystal display screen without touch.

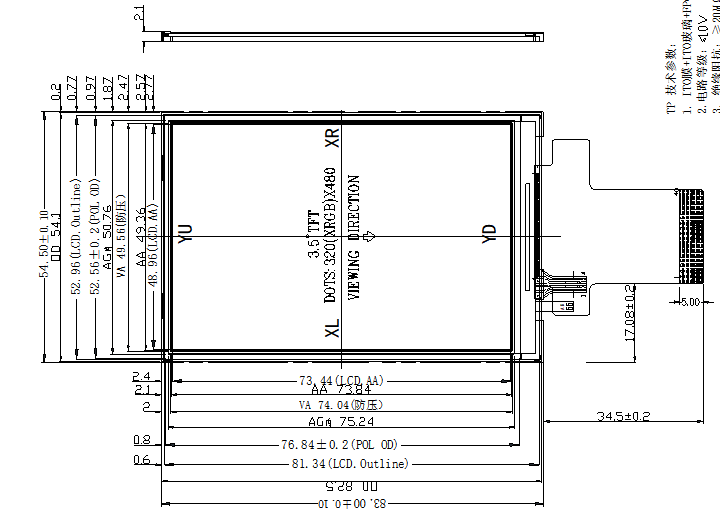

35002C040 TFT LCD display Parameter (specification)

Module Size ：54.5(W ) ×83(H)×3.3(T)	Display View Area ：48.96(W) x73.44(H)
LCD Type：TFT/TRANSMISSIVE	View Angle：12 O'clock
Driver IC：ILI9488	Backlight Driver Type：Power/3.3V/5.0VHITE
Interface Type：MCU16BIT	Number of Dots：320RGB x 480 Dots

PIN	SYMBOL
1	GND
2	VDD
3	IOVCC(1.8/2.8V)
4	/CS
5	RS
6	WRB
7	RDB
8	/RSTB
9~24	DB0-DB15
25	GND
26	YU
27	XL
28	YD
29	XR
30-34	BL-K
35-36	BL-A
37	GND
38-40	NC

35002C040 TFT LCD Similar products

FAQ

Q: What is a 3.5-inch TFT LCD?

A: It is a color LCD screen with a diagonal size of 3.5 inches (approximately 8.9 cm), driven by TFT (Thin Film Transistor) technology, capable of displaying high-resolution color images.

Q: What are the working voltage and power consumption?

A: Logic voltage: Generally 3.3V or 5V (partially compatible)

Backlight voltage: Commonly 5V or 12V (depending on the LED backlight design)

Power consumption depends on the backlight brightness and the driving method.

Q: What should be noted when using it?

A: Confirm that the interface matches the main control (SPI, RGB, MCU, MIPI).
Make sure the voltage and current of the backlight power supply are appropriate.
Avoid strong impact and static damage when in use.
Pay attention to the best viewing Angle (some screens have a 6-point viewing Angle / 12-point viewing Angle).
